EV Charging Connector Insertion & Withdrawal Force Tester Test Machine

Brand Name : Sinuo

Model Number : SNQC1013C

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 1 sets/month

Delivery Time : 45 days

Packaging Details : Other

Test Capacity : 1 kN

Moving Length : 300 mm

Moving Speed : 10.000 – 1000.000 mm/min

Worktable Size : 460 × 245 mm

Maximum Insertion/Withdrawal Force : 500 N

Drive System : Motion Control

Machine Type : Desktop type

Net Weight : Approx. 60 kg

Contact Now


EV Charging Connector Insertion & Withdrawal Force Tester Test Machine


Equipment Overview

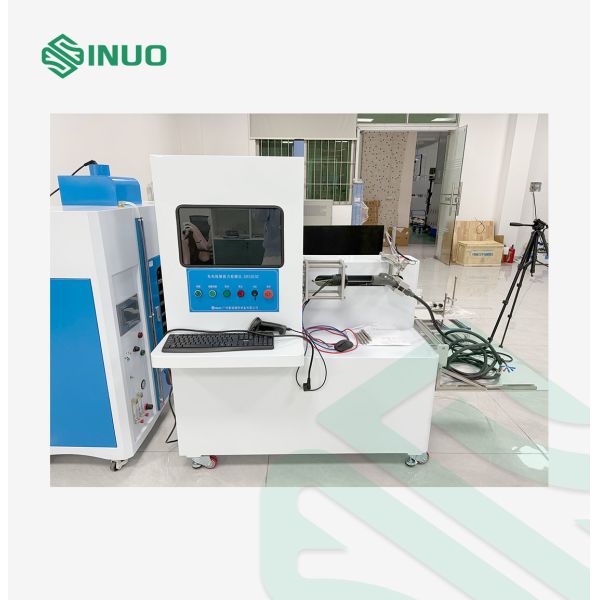

The Charging Gun Insertion & Withdrawal Force Tester is designed for precision testing of insertion and pull-out forces of EV charging connectors. It is widely used for quality inspection of incoming materials in EV charging gun manufacturing, helping prevent functional defects and ensuring compliance with required technical specifications.

The system adopts a high-precision ball screw and stepper motor drive, ensuring stable linear motion and accurate force control. With a 0.5-class force accuracy level and up to 1000 Hz sampling rate, the tester provides highly reliable test results.
It supports customized fixtures according to different charging gun models and integrates barcode scanning for automatic test data recording, making it ideal for mass production and full inspection in manufacturing plants.


Technical Parameters

1. Mechanical & Performance Parameters

Category

Item

Specification
Load Capacity Test Capacity 1 kN
Reference Standard Compliance JIS B 7721 Tensile/Compression Tester – Class 0.5
Max. Stroke Moving Length 300 mm
Speed Range Moving Speed 10.000 – 1000.000 mm/min
Drive System Motion Control High-precision ball screw + high-precision stepper motor
Maximum Insertion/Withdrawal Force Limit 500 N
Worktable Size Fixture Base 460 × 245 mm
Machine Type Structure Desktop type
Weight Net Weight Approx. 60 kg

2. Sensor & Measurement Parameters

Category

Item

Specification
Load Cell Accuracy Level 0.5 Class (measurement error ≤ 0.5%)
Sampling Rate Load Sampling Frequency 1000 times/sec
Sensor Channels Load Cell Input Channels 1 channel
Unit Options Display Units mN, N, kN (kgf, gf, lb(in) optional for overseas models)

3. Safety & Protection

Item

Specification
Protection Functions Upper/lower limit stops, overload protection, STOP button, emergency stop, software-defined limit protection

4. Power Requirements

Item

Specification
Rated Power 300 VA
Power Supply Single-phase AC100V–120V or AC200V–240V
Details
