Multi-position Mobile Manual Release Socket Mechanical Strength Test Device

Name: Multiposition Mobile Manual Release Socket Mechanical Strength Test Device
Brand: Sinuo
Price: 1 USD

Cheap Multi-position Mobile Manual Release Socket Mechanical Strength Test Device for sale

Brand Name : Sinuo

Model Number : SN2129A

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Supply Ability : 10 Sets Per Month

Delivery Time : 30 Days

Packaging Details : Export packing

Equipment weight : 50kg

Distance from fixed end : 2250mm

Drops frequency : 8 times

Drop height : 1000mm

Working temperature : 0-40℃

Drop method : Manual release

Equipment dimensions : 2400×850×400 (mm) W×D×H

Rotating device : 45° indexing, 8 directions rotatable

Contact Now

Multi-position Mobile Manual Release Socket Mechanical Strength Test Device

Complied Standards & Clauses

Conforms to IEC62196-1:2022.

Product Overview

Samples and restrictions: Charging gun cable assembly.

Application: Check the mechanical strength of the charging gun cable assembly.

Test principle: Use a clamp to fix the sample at a height of 1000mm from the ground and drop it to verify its mechanical strength.

Usage environment: Power supply: -, working temperature 0-40℃, humidity 30%-90%;

Technical Parameters

Equipment dimensions	Approx.: 2400×850×400 (mm) W×D×H
Equipment weight	50kg
Drop height	1000mm
Distance from fixed end	2250mm
Drops frequency	8 times
Rotating device	45° indexing, 8 directions rotatable
Drop method	Manual release

Details

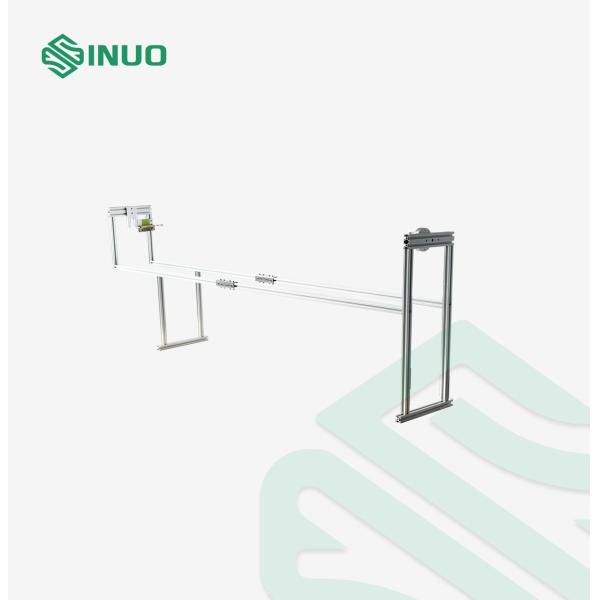

Multi-position Mobile Manual Release Socket Mechanical Strength Test Device
